Description

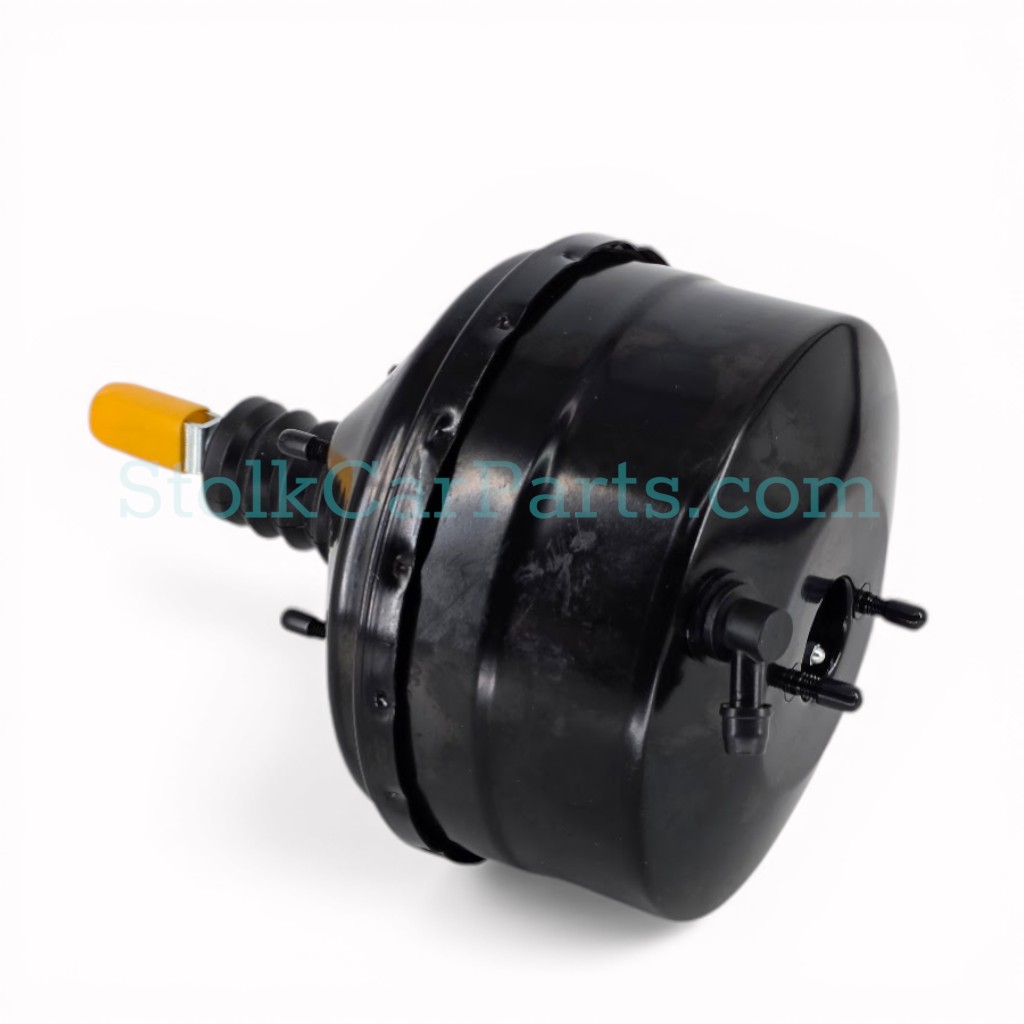

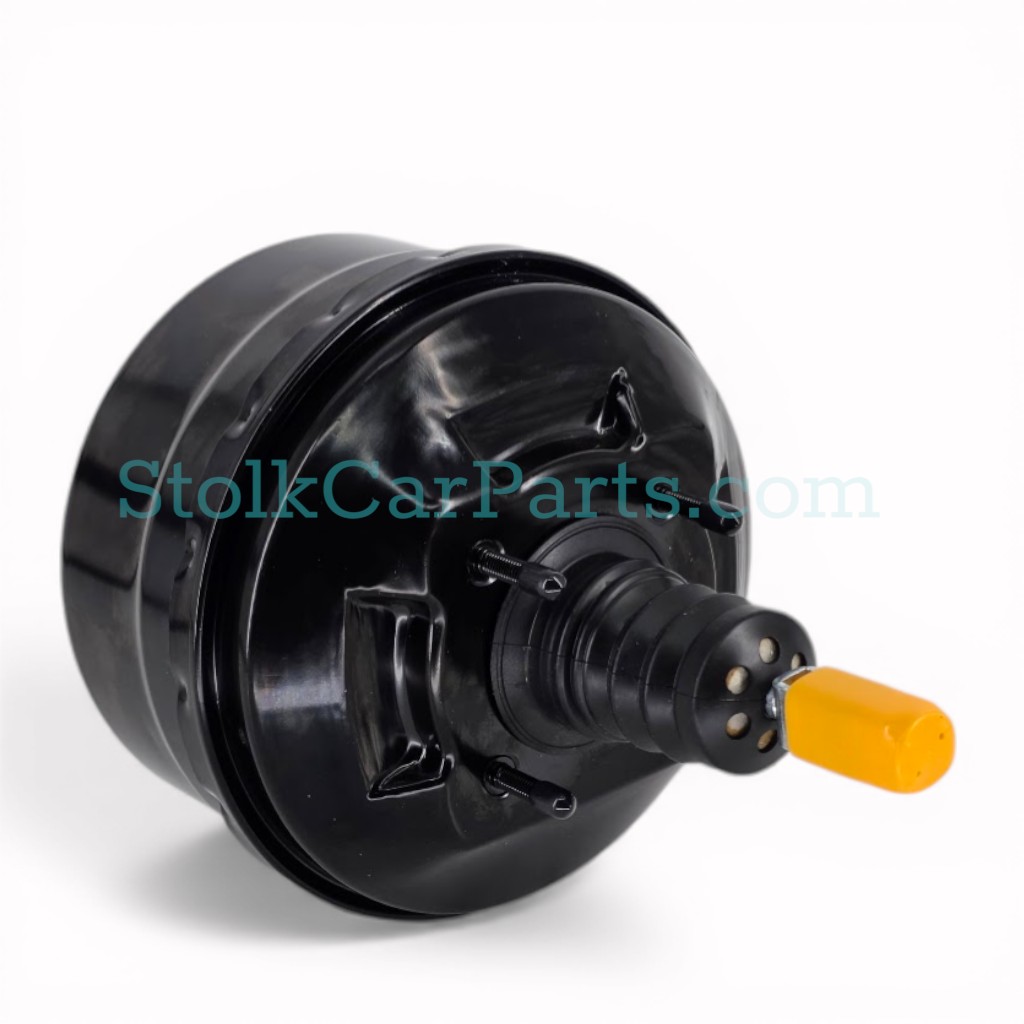

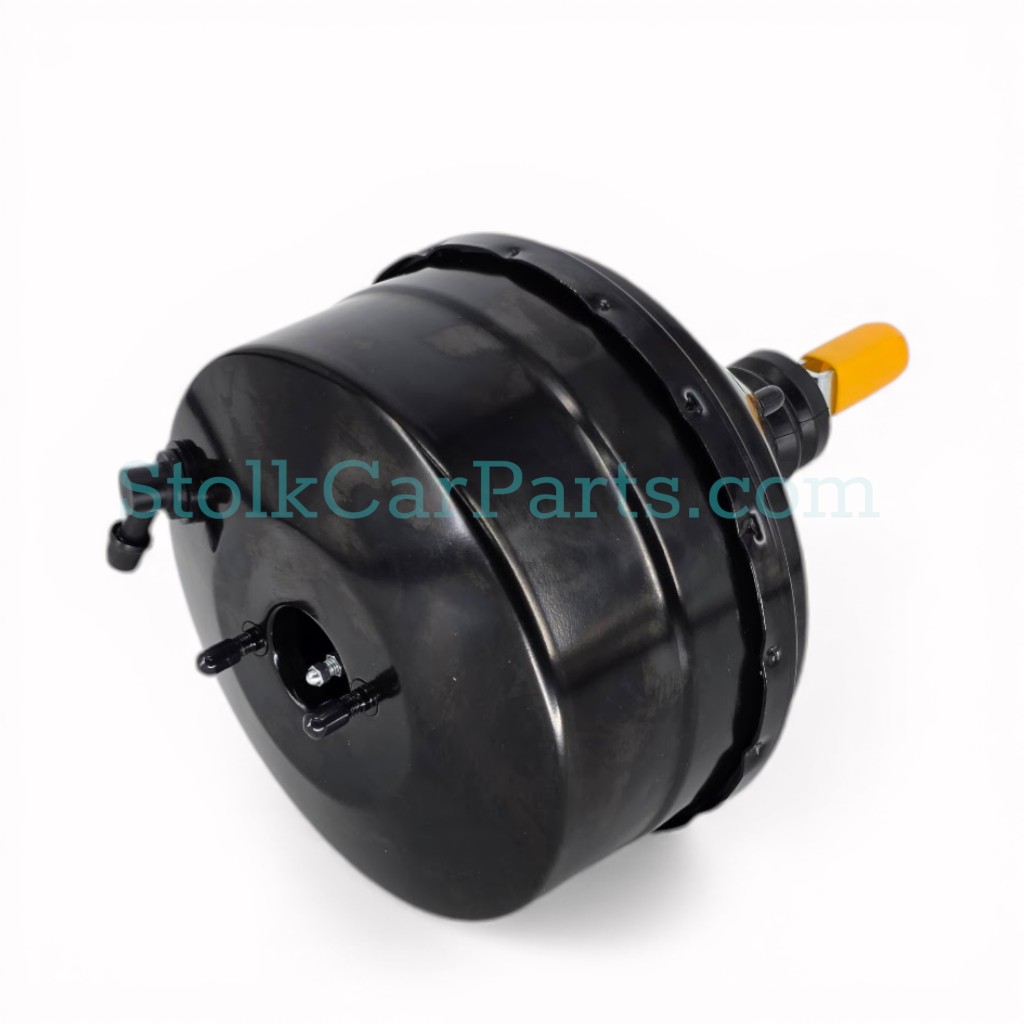

OE Brake Booster – High-quality reproduction
This brake booster is a high-quality OE reproduction and forms the ideal alternative to the original OEM parts, which have been unavailable for many years. Original ATE brake boosters are difficult to obtain nowadays and are often very expensive. This version offers a technically correct, reliable, and affordable alternative, without compromising on safety, operation, or fit.
The brake booster is manufactured according to original specifications and is ideally suited for the restoration, overhaul, and maintenance of classic Mercedes-Benz models.
Replaces / reference numbers (among others):
ATE 03.6855-2202.4
ATE 03.6855-2200.4
10367472
300061
4432571
685522024
B0068NYUGS
BREMSGERAET T52
219503 / 6855-2202.4
Mercedes-Benz:
A0034303430 / 0034303430
A0014308430 / 0014308430
A0024306830 / 0024306830
A0024304430 / 0024304430
A0004305630 / 0004305630
Suitable for the following models:
- W107 – until 08-1985
- W108 / W109 – all models
- W111 / W112 Coupé & Convertible
- 250SEC, 280SEC
- 220SEC from chassis number 066143
- 300SEC from chassis number 006869
- W113 – all models
- W116 – all models
- W126 – until 08-1985
Assembly and maintenance tips:
Preferably have the installation carried out by a specialized craftsman or classic car specialist.
Since the master brake cylinder is being removed anyway, we recommend replacing or overhauling the master brake cylinder at the same time.
Always replace the brake fluid after installation and preferably use DOT 4 or a high-quality equivalent fluid, such as Bosch ENV6.
Carefully bleed the brake system after installation to ensure optimal braking performance and safety.
An excellent choice for those looking for an original appearance, correct fit, and reliable braking performance for their classic Mercedes-Benz.
